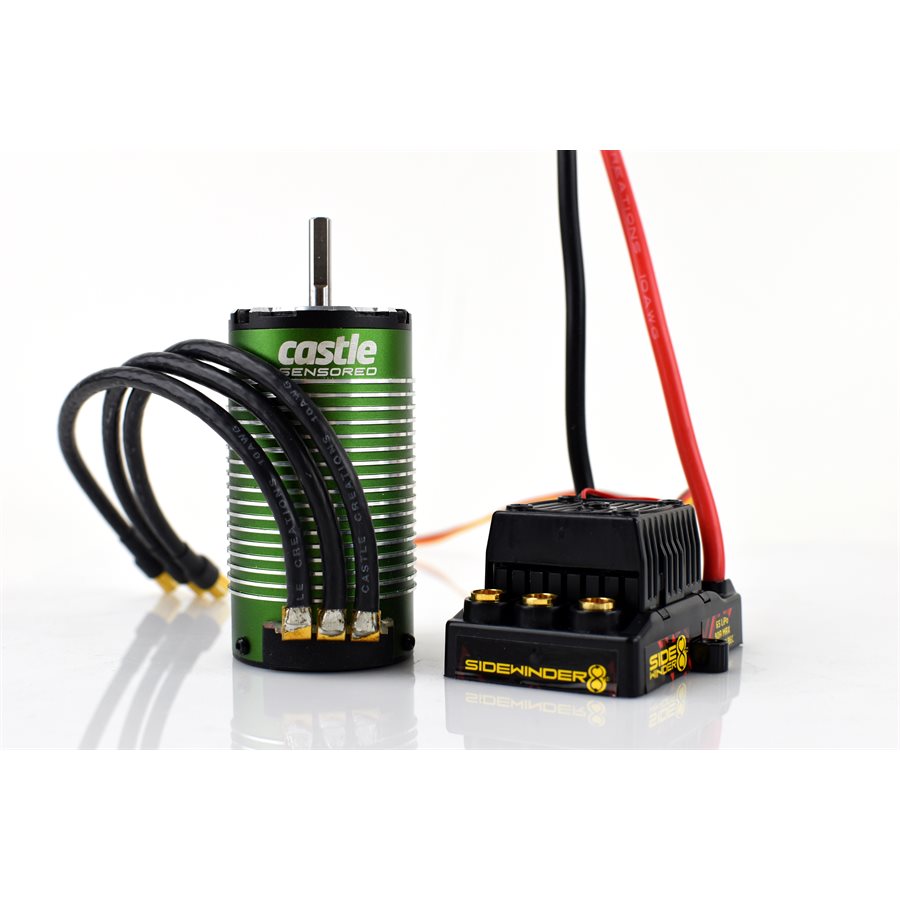

Castle Creation Sidewinder 8Th Esc And 2200 Kv V2 Motor Combo
Castle Creation Sidewinder 8Th Esc And 2200 Kv V2 Motor Combo

Castle Creation Sidewinder 8Th Esc And 2200 Kv V2 Motor Combo

Write a Review
Your Price: $244.95
Retail Price:$298.95
You Save:$54.00(18%)
Part Number: CSE010-0139-02
GTIN: 819326013027
Availability: In Stock.

Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

ESC Features:

  • 2s - 6s LiPo (25.2V) use in vehicles up 11.lbs with battery, ready-to-run.
  • Smooth sensorless motor operation with included 1515-2200kv sensored** brushless motor
  • Large 6.5mm female motor bullet connectors (male connectors sold separately)
  • Waterproof design ESC and splash resistant 30MM fan*
  • Powerful 5.5 volts fixed, 8 amps Peak BEC
  • LED error codes for common error conditions
  • Convenient transmitter programming for nine common adjustable settings
  • Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
  • Proudly Designed, Assembled and Supported in Olathe, KS USA
  • Backed by Castle Creations' 1 YR WARRANTY


1515-2200Kv V2 Features:

  • Input Voltage range: 2s-6s LiPo
  • Redesigned stator and rotor resulting in improved magnetic flux.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA.
  • Backed by Castle Creations' 1-YEAR WARRANTY

Sidewinder 8 Combo includes:

  • Sidewinder 8th ESC
  • Castle 1515-2200Kv V2 brushless sensored* motor
  • Drivers Ed and Quick Start Guide
  • Castle decal sheet

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
** Sensored capabilities of the motor cannot be utilized with the Sidewinder 8th ESC, must be run in sensorless mode.

Controller Specifications

nput Voltage Range: MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
BEC Specifications: 5.5V fixed; 8A peak
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: No
Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size: L: 2.45" (62.2mm)
W: 2.20" (56mm)
H: 1.33" (34mm)
Weight (with wires): 3.52 oz. (100g)
Connectors: 6.5mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required, 6.5mm Castle Connectors are recommended.
Product Use Statements: *Although Sidewinder 8 and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Application Guidelines: Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 11 lbs, with batteries, ready-to-run.
Recommended Motors: Combo includes Castle sensored 1515 2200Kv V2: Max Cells: 6s Lipo or 16 NiMH
Max. Recommended Vehicle Weight: Less than 11 lbs, with batteries, ready-to-run
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-Link Bluetooth Adapter (sold separately).
Telemetry Link Capable: No

Motor Specifications

Input Voltage Range: 2-6S LiPo
Kv: 2200
Max. RPM: 60,000
Size: Length: 75.4mm
Diameter: 40mm (41.4mm with fins)
Weight (w/wires): 429g (15.1oz); 380g without wires
Shaft Size: Length: 20mm
Diameter: 5mm
Mounting Hole Specifications: M3 and M4 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.
Application Guidelines: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.(11 lbs. with included Sidewinder 8 ESC)
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:

Running modes: Sensorless (with included Sidewinder 8 ESC), but can run Sensored and SMARTSENSE with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
