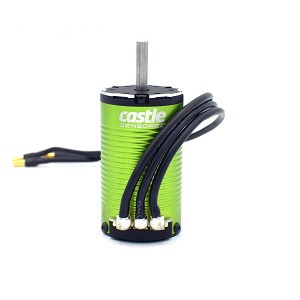

Castle Creations 1412 Sensored 4-Pole Brushless Motor w/5mm Shaft (3200kV)
Castle Creations 1412 Sensored 4-Pole Brushless Motor w/5mm Shaft (3200kV)

Castle Creations 1412 Sensored 4-Pole Brushless Motor w/5mm Shaft (3200kV)

Write a Review
Your Price: $129.95
Part Number: CSE060-0096-00
GTIN: 819326011658
Availability: Coming Soon

Drivers in all applications demand clean starts when coming off the line. Crawler fans require high-precision low speed control and torque for climbing, racers need precision and predictability, and dragsters don’t have a millisecond to spare. To achieve all of these performance demands and more, we have integrated rotor position sensor technology with our improved high power and high efficiency motor design. Through the use of our sensors, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup. Users will experience PRECISE throttle control and BUTTERY SMOOTH starts plus the RAW POWER and LONGER RUN TIMES that our highly efficient motors produce.

Specifications:

Input Voltage Range: 2s-4s LiPo
Kv: 3200
Max. RPM: 75,000
Size: Length: 62.5 mm
Diameter: 36 mm
Weight (w/wires): 266g (9.5oz)
Shaft Size: Length: 21 mm
Diameter: .197" (5 mm)
Mounting Hole Specifications: M3 @ 25.4 mm
Cooling Fan: Optional
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: Ideal for 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 3s LiPo and weighing up to 6.5 lbs; it can be run on a 4s LiPo with very conservative gearing and keep a close eye on temperatures. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 4s LiPo.
Recommended ESC(s): Mamba X,  Copperhead 10, Sidewinder 4
Running Modes: SmartSense™ (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode.
