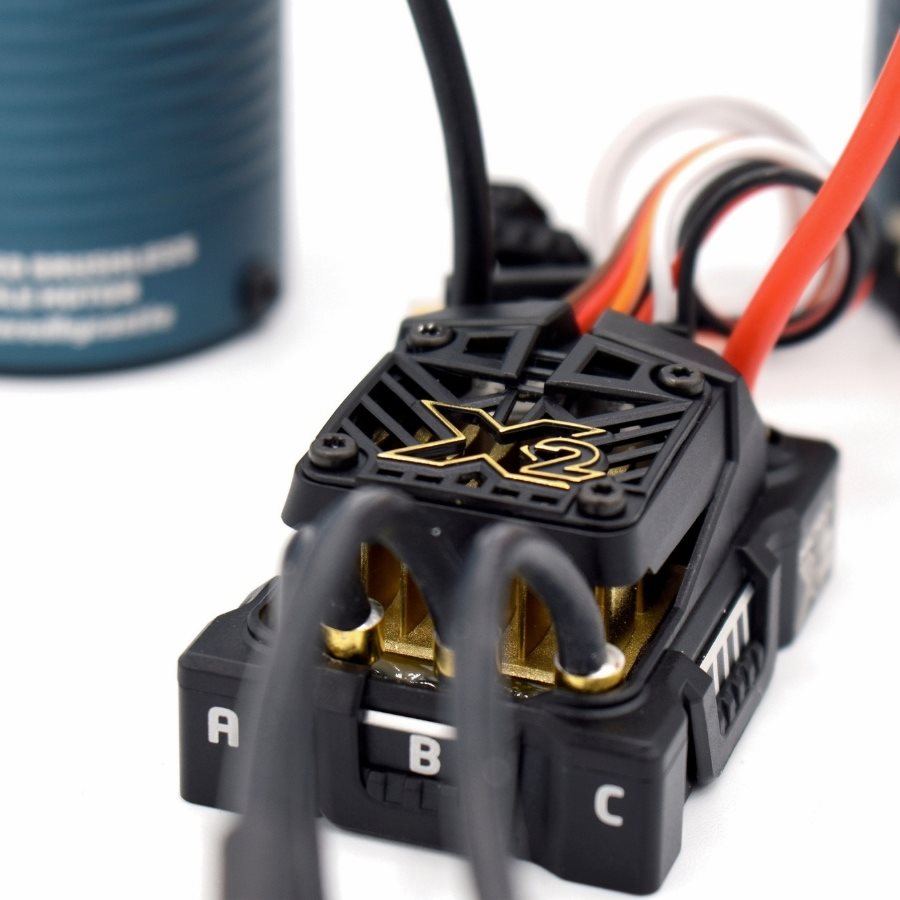

Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Combo w/1900Kv
Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Combo w/1900Kv

Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Combo w/1900Kv

Write a Review
On sale: $189.95 $129.99
Part Number: CSE010-0171-01
GTIN: 819326010644
Availability: In Stock.

The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT.

This ESC and Motor Combo is ideal for the weight conscious builder or where space is limited, it is perfect for 1:10 scale low speed rock crawlers/trail runners on 3S-4S weighing less than 8lbs. It can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.

Important Product Update, 8/2/2022. Due to ongoing supply chain disruptions, we have been unable to manufacture the Micro X2. The parts in question are integral to the onboard 2-amp BEC. In an effort to provide the Micro X2 for sale again, we have removed the internal BEC and are including our external 10-amp CC BEC (a $24 value) with every Micro X2 purchase. This upgraded BEC has a wider range of BEC voltages and much higher current capacity. The retail price for the ESC and combos has not changed. For instructions on how to install the CC BEC, please visit www.castlecreations.com/microx2BEC.

If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC. Like its predecessor it includes improved features for rock crawling, including active drag brake and drag brake ramp.

FEATURES:

  • Input Voltage range 2S-4S
  • Waterproof design, Included CC BEC is not waterproof.
  • Sensored Motor capable
  • Convenient transmitter programming for six common adjustable settings.
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately)
  • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
  • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.
  • Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.



Mamba Micro X2 w/1406-1900Kv Purchase Includes:
  • Mamba Micro X2 ESC with 4mm Connectors
  • External 10-amp CC BEC
  • 1406-1900Kv Sensored Motor
  • Sensor Harness
  • Coupon for free Castle Link USB adapter
  • Driver's Ed and Quick Start Guide
  • Castle Decals

Specifications:

Input Voltage Range: 2S-4S LiPo (16.8V Max)
BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.
Operating Environment: Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof.
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Not included
Size: 41.6 mm x 29.4 mm x 21.3 mm
Weight (with wires): 1.66 oz / 47 grams
Connectors: 4.0 mm bullets
Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
Product Use Statements:
  • Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
  • Recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  • Mamba Micro X has 4.0mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
