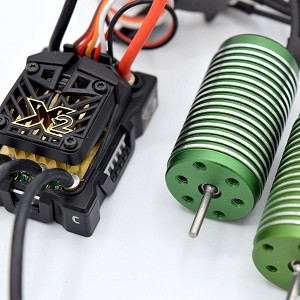

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo (5300Kv)
Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo (5300Kv)

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo (5300Kv)

Write a Review
Your Price: $139.95
Part Number: CSE010-0169-02
GTIN: 819326012587
Availability: In Stock.

The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle.  Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT (included 0808 motor is sensorless).

This is the perfect upgrade for 1:18 scale RC vehicles, up to 3S LiPo and weighing in at up to 2lbs. Vehicles include: Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.

The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.

Features:

  • Input Voltage range 2S-3S (with included 0808-4100Kv motor)
  • Waterproof design, included CC BEC is not waterproof.
  • Convenient transmitter programming for six common adjustable settings.
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
  • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
  • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.
  • Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.
Mamba Micro X2 w/0808-5300Kv Motor Purchase Includes:
  • Mamba Micro X2 ESC
  • External 10-amp CC BEC
  • 0808-5300Kv Brushless Sensorless Motor
  • Coupon for free Castle Link USB adapter
  • Quick Start Guide
  • Castle Decals

Specifications:

Technical Specs Mamba Micro X2 ESC
Input Voltage Range: 2S-4S LiPo (16.8V Max) (3S max with included 0808-5300Kv motor)
BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Not included
Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 3.5 mm bullets
Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
Technical Specs 0808-5300Kv Brushless Sensorless Motor
Input Voltage Range: 2S-3S LiPo, 4-9 cell NiMH
Kv: 5300
Max. RPM: N/A
Size: Length: 1.5" (38mm)
Diameter: 0.79" (20mm)
Weight (w/wires): 1.8 oz. (50g)
Shaft Size: Diameter: 0.08" (2mm)
Length: 12mm
Mounting Hole Specifications: 2.5mm holes @ 1/2”, 14MM, 5/8”
Cooling Fan: No
Connectors: 3.5mm male bullets
Product Use Statements: N/A
Application Guidelines: Up to 3S LiPo and weighing in at up to 2lbs.
Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo
Max. Recommended Vehicle Weight: 2lbs
Tech Notes: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
