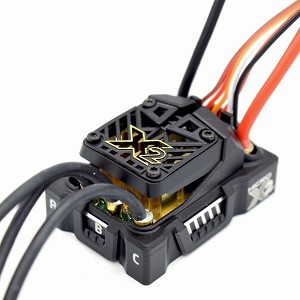

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless ESC w/CSE010-0004-00 10A BEC
Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless ESC w/CSE010-0004-00 10A BEC

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless ESC w/CSE010-0004-00 10A BEC

Write a Review
Your Price: $99.95
Part Number: CSE010-0169-00
GTIN: 819326010507
Availability: In Stock.

The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.

Features:

  • Input Voltage range 2S-4S
  • Waterproof design; included CC BEC is not waterproof.
  • Sensored Motor capable (with optional sensor harness)
  • Convenient transmitter programming for six common adjustable settings.
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
  • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
  • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.
  • Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.
Mamba Micro X2 ESC Purchase Includes:
  • Mamba Micro X2 ESC with 3.5mm connectors
  • External 10-amp CC BEC
  • Coupon for free Castle Link USB adapter
  • Quick Start Guide
  • Castle Decals
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Specifications:
Input Voltage Range: 2S-4S LiPo (16.8V Max)
BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.
Operating Environment: Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof.
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Not included
Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 3.5 mm bullets
Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
Product Use Statements:
  • Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
  • Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  • Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
