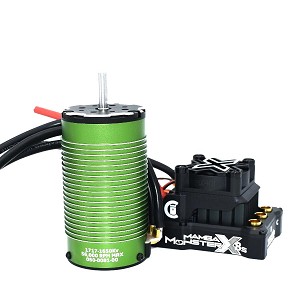

Castle Creations Mamba Monster X 8S 1/6 ESC/Motor Combo w/1717 Sensored Motor (1650kv)
Castle Creations Mamba Monster X 8S 1/6 ESC/Motor Combo w/1717 Sensored Motor (1650kv)

Castle Creations Mamba Monster X 8S 1/6 ESC/Motor Combo w/1717 Sensored Motor (1650kv)

Write a Review
Your Price: $359.95
Part Number: CSE010-0165-02
Availability: Out of Stock.

Drive fearlessly and punch that throttle! The MAMBA MONSTER X 8S utilizes Castle’s breakthrough technology CRYO-DRIVE™. By reducing the rate at which the ESC heats up and removing heat more efficiently, your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm cooling fan and a forged elliptical fin heatsink, the design maximizes airflow throughout the system, taking thermal performance to a whole new level.

High-performance demands high quality and this ESC was designed with durability in mind. Constructed around a robust aluminum casing, the epoxy potting guarantees protection around the circuitry and ensures all-weather use. Mamba Monster X 8S is a workhorse, it will dominate in the harshest of environments.

ESC Features:

  • Input Voltage Range 2S-8S LiPo
  • Sensorless, Sensored and SmartSense™ Running Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 40MM cooling fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Easily tune and update ESC with USB and Bluetooth™ programming options
  • Castle Link USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
  • Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
Motor Features:
  • 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
  • Proprietary stator winding produces low internal resistance for a cooler running motor
  • Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
  • High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
ESC Specs:
Input Voltage Range:MIN: 2S LiPo , MAX: 8S LiPo 33.6V
BEC Specifications:Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment:Waterproof* design allows for use in nearly any environment.
Brake:Proportional
Reversible:Yes, but may be disabled for racing.
On/Off Switch:Yes, waterproof
Cooling Fan:Yes, factory equipped (40MM), fully removable** (see Product Use Statements below)
Size:L x W x H 69.5mm x 54.1mm x 47mm
Weight (with no battery connector):5.75 oz. (163 grams)
Connectors:6.5mm female bullets for motor connection.
Items Needed for Operation:A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.


Motor Specs:
Input Voltage Range:3S-8S LiPo
Kv: 1650
Max. RPM: 56,000
Size: Length: 3.35" (85.1mm)
Diameter: 1.87" (47.6mm)
Weight (w/wires):  21.08oz. /597.6g
Shaft Diameter: 5mm
Mounting Hole Specifications: M3 and [email protected] (1.0") Diameter
Cooling Fan: Not available
Connectors: 6.5mm male connectors
Application Guidelines:
Ideal for vehicles up to 20lbs running 6s – 8s LiPo.  Examples include Losi LST2-E; Arrma™: Limitless™, Typhon™ 6s, Infraction™, Talion™ 6s;
Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™
