Futaba S9177SV S.Bus High-Torque Airplane Servo
Futaba S9177SV S.Bus High-Torque Airplane Servo
Add to Wish List
Email a friend
Futaba S9177SV S.Bus High-Torque Airplane Servo
Write a Review
Your Price:
$179.99
Part Number:
FUT01102266-3
GTIN:
4513886207396
Brand:
Futaba
Availability:
Coming Soon
Put me on the Waiting List
Put me on the Waiting List
Description
Features
Specifications
Compatibility

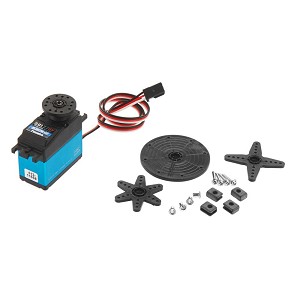

This is the Futaba S.Bus2 S9177SV High Torque Coreless Digital Servo.
Includes
:
S.Bus2 S9177SV Servo
0.83" (21mm) diameter Round Horn
1.8" (45mm) diameter Round Horn
1.5" (39mm) Four Point Horn
1.2" (32mm) Six Point Horn
Four each Grommets, Eyelets and Mounting Screws
Servo Horn Screw
Instruction Sheet
For airplane usage
Dual ball bearing output
Metal gears
May be connected to a PC by using the CIU-2 USB adapter (FUTM0951)
not included, separate purchase required
May be used in SBus and SBus 2 ports
Aluminum center case for efficient heat dissipation
One year warranty through Hobby Services beginning at date of purchase
6.0V 6.6V 7.4V
Torque:
466 oz-in 512 oz-in 569 oz-in
33.6 kg-cm 36.8 kg-cm 41 kg-cm
Speed:
0.13 sec 60° 0.12 sec 60° 0.11 sec 60°
Dimensions:
1-5/8 x 13/16 x 1-1/2" (41 x 21 x 37mm)
Weight:
2.6oz (74g)
SBus Programmable Defaults
Dead Band Degree:
0.36
Damper Factor:
144
Stretcher Gain:
1
Boost:
5
Neutral Offset Degree:
0
Travel Adjust Percentage:
100%
Reverse (Normal/Reverse):
Nor
Stop Mode (Free/Hold):
Hold
Buzzer (On/Off):
Off
Smoother (On/Off):
On
Boost (On/Off):
Off
Soft Start:
3.0
