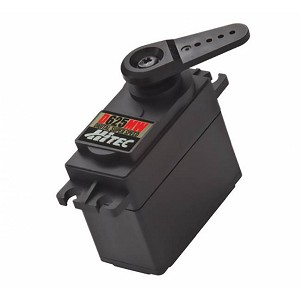

Hitec 32-Bit High Speed Metal Gear Servo D625MW

Write a Review
Your Price: $39.99
Part Number: HRC36625
Availability: In Stock.
The metal D-625MW is part of the Hitec D-Series dynamo servo line. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Features:
  • Titanium Gears
  • 32-bit MCU and 12-bit ADC
  • 25-tooth output spline
Specification:

Bearing: Dual
Bushing Or Bearing: Bearing
Connector Type: Z-Connector
Gear Material: Titanium
Gear Type: Metal
Height: 1.59 in. (40.6mm)
Length: 1.48 in (37.8mm)
Programmable: Yes
Servo Operating Voltage: 4.8-7.4V (High Voltage)
Servo Type: Digital
Speed: .20 @ 4.8v, 0.15 @ 6.0v, .13 @ 7.4v
Spline Count: 25-Tooth
Torque: 87 oz-in @ 4.8v, 122 oz-in @ 6.0v, 139 oz-in @ 7.4v
Weight: 2.11 oz (59.8g)
Width: 0.77 in (19.8mm)
