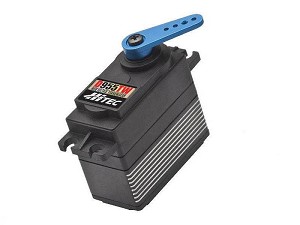

Hitec D955TW Ultra Torque Titanium Gear Digital Servo (High Voltage) HRC36955

Hitec D955TW Ultra Torque Titanium Gear Digital Servo (High Voltage)

Write a Review

Your Price: $134.99

Part Number: HRC36955

GTIN: 669962369558

Brand: Hitec

Availability: In Stock.

Quantity

Description
Compatibility

The power of Hitec’s D-Series servos continues with the introduction of the next Premium Class trio: the D930SW, D954SW and D955TW. As with our entire “D” line, these technologically-advanced servos are powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. The reliably-strong titanium-geared D955TW replaces the well-known HS-7955TH. Advancing servo technology and providing superior engineering has always been Hitec’s mission and that continues today as we expand our outstanding D-Series product line.

Features:

Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline
Coreless Metal Brush Motors
Nylon Reinforced Plastic Upper and Lower Case
Diamond Cut Aluminum Heat Sink Center Case
Dust Resistant and Splash Proof Case

Programmable Features:

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

Performance Specifications:

Operating Voltage Range (Volts DC)     4.8V ~ 7.4V
Speed (Second @ 60°)     0.19 ~ 0.12
Maximum Torque Range oz. / in.     251 ~ 404
Maximum Torque Range kg. / cm.     18.0 ~ 29.0
Current Draw at Idle     30 mA
No Load Operating Current Draw     500 mA
Stall Current Draw     5,200 mA
Dead Band Width     1 µs

Physical Specifications:

Dimensions (Inches)     1.57 x 0.78 x 1.46
Dimensions (Metric)     40.0 x 20.0 x 37.0
Weight (Ounces)     2.33
Weight (Gram)     66.0
Circuit Type     32bit Programable Digital
Motor Type     Coreless Metal Brush
Gear Material     MK 1st Gear & 3 Titanium Gears
Bearing Type     Dual Ball Bearing
Output Shaft (type / Ømm)     H25T
Case Material     Plastic / Aluminum
Dust / Water Resistance     Splash Proof
Connector Gauge (AWG) / Strand Count     20 / 80
