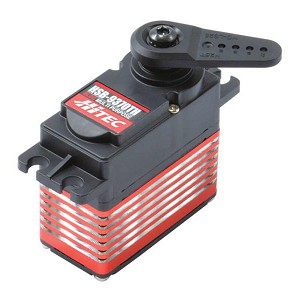

Hitec HSB-9370TH Brushless Titanium Gear Servo
Hitec HSB-9370TH Brushless Titanium Gear Servo

Hitec HSB-9370TH Brushless Titanium Gear Servo

Write a Review
Your Price: $219.99
Part Number: HRC39373S
GTIN: 669962393737
Brand: Hitec
Availability: In Stock.
With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers.

Features:
  • Speed: @4.8V .12sec/60' / @7.4V .10sec/60'
  • Torque: @7.4V 347oz/in
  • Programmable 12-Bit PWM Digital Amplifier
  • Custom Long Life Brushless Motor
  • 1M Cycle Long Life Potentiometer
  • Constant Output Torque
  • Wide Operating Voltage (5 ~ 9 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • Dust Resistant and Splash Proof Case
  • 25-Tooth Output Spline
  • Hybrid Nylon Reinforced Plastic and Aluminum Case
  • Low Power Consumption
Specifications
Bearing: Dual Ball Bearing
Bushing Or Bearing: Bearing
Gear Type: Metal
Wire Gauge: 20 AWG
Maximum Servo Torque: 347oz/in @ 6.0V ~ 7.4V
Current Draw Stall: 2,100 mA
Gear Material: Titanium
Motor Type: Brushless
Servo Operating Voltage
6.0 - 7.4V (HV)
Application: High Performance Aircraft, Cars, Boats
Product Weight: 2.4oz (68.0g)
Spline Count: 25 - Tooth
Water-Resistant: No
Deadband: 1µs
Input Voltage: 6.0V ~ 7.4V
Product Height: 1.5" (38 mm)
Servo Type: Digital
Programmable: Yes
Servo Size Category: Standard
Connector Type: Universal
Maximum Servo Speed: 0.12 sec/60 deg @ 6.0V, 0.10 sec/60 deg @ 7.4V
Product Length: 1.57" (40 mm)
Current Draw Idle: 27 mA
Product Width: 0.79" (20 mm)
