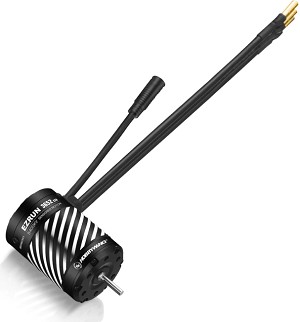

Hobbywing Ezrun 3652 G3 Sensored Brushless Motor (3300kV)

Ezrun 3652 G3 Sensored Brushless Motor, 3300kV, for Short Course Truck/Truggy/Monster

Features:

• The EzRun G3 features an improved water- proof sensored cable interface and an upgraded sensored mode to achieve motor temperature protection and perfectly matches the EzRun MAX10 G2 ESC.
• The high-precision Hall sensor components ensures that the rotor position output is always accurate and consistent, achieving excellent linearity and a great throttle control.
• The EzRun 3652 G3 motor adopts a high precision bearing that is waterproof in the front end of the motor. The rear end of the motor uses precision iron cover with a smaller structure to improve the capacity, and at the same time, provides a higher bearing speed while keeping resistance low. The operation is smoother and more reliable.
• Compared to the G2 motor, the motor temperature is greatly reduced under the same load conditions. The overall efficiency is 3% more effective while the maximum output power has increased by 5%.
• All the materials used on the EZRUN 3652 G3 motor (Motor casing, bearings, ultra-thin silicon steel sheets, high temperature-resistance copper wire, explosion-proof rotor, and high-tolerance alloy shaft) are carefully selected and approved by our in-house engineers. Hobbywing is serious about providing users with extraordinary performance for a long period of time.
• The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow, and water without damaging the power unit.

Specifications

• No-load Current: 3.9A
• Pole: 4
• Weight(g): 227.1
• Bearing Size: Front: D13*D5*T4 / Rear: D11*D5*T5
• Motor Diameter & Length (mm): F=37 / L=53
• Shaft Diameter & Length (mm): F=3.17 / L=15
