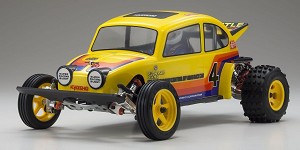

Kyosho BEETLE 2014 1/10 EP 2WD Buggy KIT

Features

• Revival of the off road BEETLE. 2014 version upgraded throughout. ?Kit includes pre-assembled gearbox and oil shocks (shock oil sold separately).
• 6061T6 forged aluminum suspension arms.
• Two-piece diecast aluminum gearbox with built-in diff gears.
• Slipper clutch protects gears and provides traction setting options. ?Oil shocks with aluminum cylinders and stainless shafts deliver smooth movement.
• Countersunk surface allows screws to be seated flat.
• Lightweight design from reduction in tapping screws and nuts.
• Near complete use of hex screws provides secure assembly.
• One-piece structure of rear wheels realizes lighter weight.
• Inner sponges included with rear tires.
• Includes newly developed block pattern high-grip compound tires. ?High efficiency full ball bearing specification. (14 included)
• Radio box is suitable for the various shapes and sizes of current batteries.
• Ball diff from Ultima RB can be installed as an optional upgrade.

Specifications

• Length 398mm
• Width 236mm
• Height 165mm
• Wheelbase 263mm
• Tread (F/R) 198mm / 195mm
• Tire(F/R) 75×20mm / 85×41mm
• Gear Ratio H setting 6.9:1?L setting 8.3:1 (2 combinations included)
• Weight 1,040g approx. (w/out R/C system & battery)
• Motor 540-class (sold separately)

Kit Content

• Pre-assembled kit (gear box and oil shocks are pre-assembled)
• Pre-cut clear polycarbonate body
• Decals
• L-shape hex wrench
• Cross wrench
• Shock wrench
• Shock oil
• Grease

Required To Run

• 2-channel, 1-servo R/C system for cars
• 540-class motor (30-27 turns recommended)
• ESC compatible with motor
• Battery pack for chassis
• Battery charger
• Paint for painting the polycarbonate body
• Batteries for transmitter
• Tools (1.5, 2, 2.5mm hex wrench driver)
