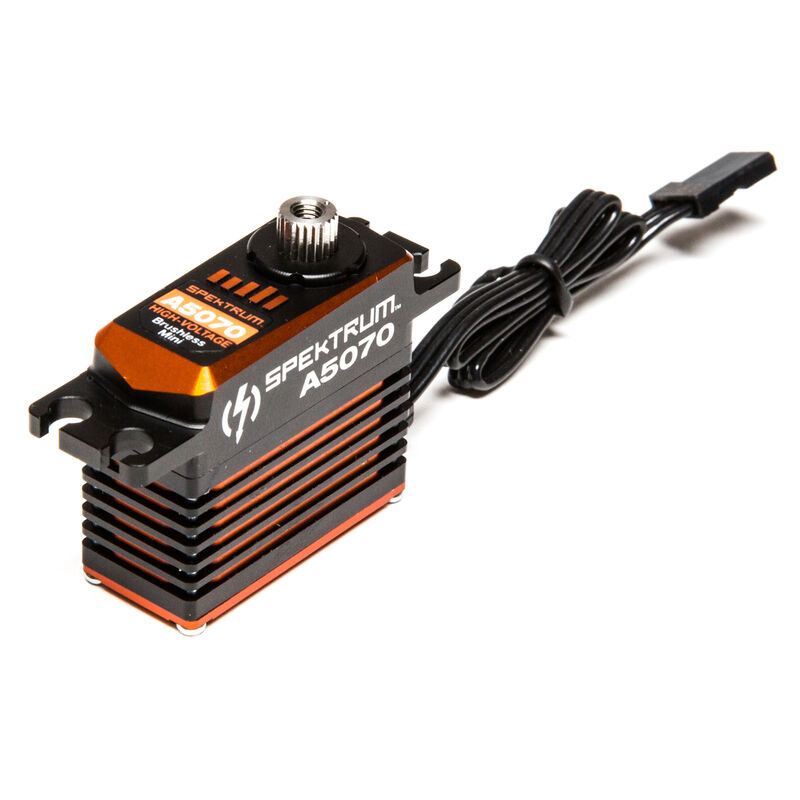

Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo
Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo

Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo

Write a Review
Your Price: $159.99
Part Number: SPMSA5070
GTIN: 605482279281
Brand: Spektrum
Availability: In Stock.

Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate. The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.

Features
  • High torque both on HV and non-HV applications
  • Allows BECs of adjustable BEC ESCs to be set higher to increase performance
  • Acts as a heat sink for the motor and ESC
  • Low deadband, high resolution, with impressive holding torque for unmatched performance
  • Durable high performance finish
Specifications
  • Application: Airplane or Heli
  • Bearing: Dual Ball Bearing
  • Bushing Or Bearing: Bearing
  • Connector Type: Universal
  • Connector Wire Length: 11.8" (300 mm)
  • Deadband: 2µs
  • Gear Type: Metal
  • Maximum Servo Speed: 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V
  • Maximum Servo Torque: 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
  • Motor Type: Brushless
  • Overload Protection: Yes
  • Product Application: Air
  • Product Height: 1.16" (29 mm)
  • Product Length: 1.32" (34 mm)
  • Product Weight: 1.4 oz (40g)
  • Product Width: 0.59" (15 mm)
  • Programmable: No
  • Rotation Range: 120 Degrees
  • Servo Operating Voltage: 6.0 - 8.4V (HV)
  • Servo Size Category: Mini
  • Servo Type: Digital
  • Spline Count: 23 - Tooth
  • Water-Resistant: No
  • Wire Gauge: 22 AWG
