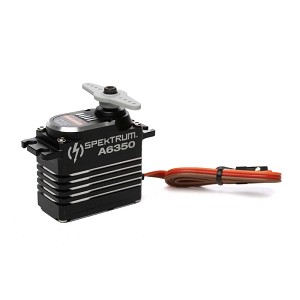

Spektrum A6350 Ultra Torque High Speed Brushless HV Servo
Spektrum A6350 Ultra Torque High Speed Brushless HV Servo

Spektrum A6350 Ultra Torque High Speed Brushless HV Servo

Write a Review
Your Price: $199.99
Part Number: SPMSA6350
GTIN: 605482154922
Brand: Spektrum
Availability: In Stock.

The Spektrum™ A6350 Ultra-Torque / High Speed Brushless HV Servo is the next evolution in the expanding line of leading-edge performance servos from Spektrum". Designed with the extraordinarily strong and reliable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that's ready for the demands of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is also a good choice for any application that requires high performance, high speed, and ultimate power.

Features:

  • High Voltage (HV) capable (6.0-8.4v input range)
  • Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
  • Durable and long-lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Operating Frequency: 200hz to 333hz

Specifications:

Bearing Dual BB
Bushing Or Bearing Bearing
Gear Type Metal
Input Voltage 6.0V to 8.4V
Material Aluminium
Maximum Servo Speed 0.145 sec/60 deg @ 6.0V; 0.115 sec/60 deg @7.4V; 0.095 sec/60 deg @ 8.4V
Maximum Servo Torque 500+ oz-in
Motor Type Brushless
Overload Protection Yes
Product Height 1.61" (41 mm)
Product Length 1.61" (41 mm)
Product Weight 3 oz (85g)
Product Width 0.83" (21 mm)
Servo Operating Voltage 4.8 - 8.4V (HV)
Servo Size Category Standard
Servo Type Digital
Spline Count 23 - Tooth
Torque 576 oz-in (41.5 kg-cm) @ 6.0V; 725 oz-in (52.2 kg-cm) @ 7.4V; 852 oz-in (61.4 kg-cm) @ 8.4V
