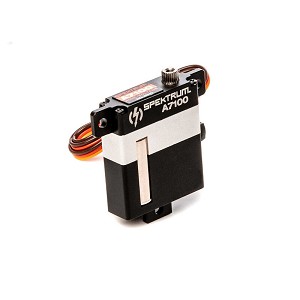

Spektrum A7100 MT/MS Metal Gear HV Wing Servo
Spektrum A7100 MT/MS Metal Gear HV Wing Servo

Spektrum A7100 MT/MS Metal Gear HV Wing Servo

Write a Review
Your Price: $99.99
Part Number: SPMSA7100
GTIN: 605482153833
Brand: Spektrum
Availability: In Stock.

The Spektrum ™ A7100 digital metal gear servo offers phenomenal performance for sailplanes and other thin wing applications. High voltage capable, the A7100 can produce 8.3kg-cm (115 oz-in) of torque at fast 0.078 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting coreless motor and is ball bearing supported for smooth operation. It also features a full aluminum case plus low deadband and extraordinary precision. Like all Spektrum servos, the A7100 delivers reliability, consistency and performance that are second to none.

Features:

  • High Voltage (HV) capable (4.8-8.4v input range)
  • Specifically designed for thin wing aircraft models and sailplanes
  • Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
  • Aluminum servo case helps keep operating temperatures low
  • Low wear and tightly meshed all metal gear train
  • Bearing supported drive train helps maximize smooth operation
  • Over Current and Temperature protection
  • Operating Frequency: 200hz to 333hz

Specifications:

Bearing Single BB
Bushing Or Bearing Bearing
Deadband <1µs
Gear Type Metal
Input Voltage 4.8V-8.4V
Maximum Servo Speed 0.091 sec/60 deg @ 6.0V; 0.086 sec/60 deg @ 7.4V; 0.078 sec/60 deg @ 8.4V
Maximum Servo Torque 100-199 oz-in
Motor Type Brushed
Overload Protection No
Product Height 1.38" (35 mm)
Product Length 1.18" (30 mm)
Product Weight 1.0 oz (28g)
Product Width 0.39" (10 mm)
Programmable No
Servo Size Category Thin
Servo Type Digital
Spline Count 25 - Tooth
Torque 96 oz-in (6.9kg-cm) @ 6.0V; 100 oz-in (7.2kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V
