Spektrum Firma 130A Brushless Smart ESC / 2200Kv Sensored Motor Combo
Spektrum Firma 130A Brushless Smart ESC / 2200Kv Sensored Motor Combo

Spektrum Firma 130A Brushless Smart ESC / 2200Kv Sensored Motor Combo

Write a Review
Your Price: $269.99
Part Number: SPMXSEMC17
GTIN: 605482184622
Brand: Spektrum
Availability: In Stock.

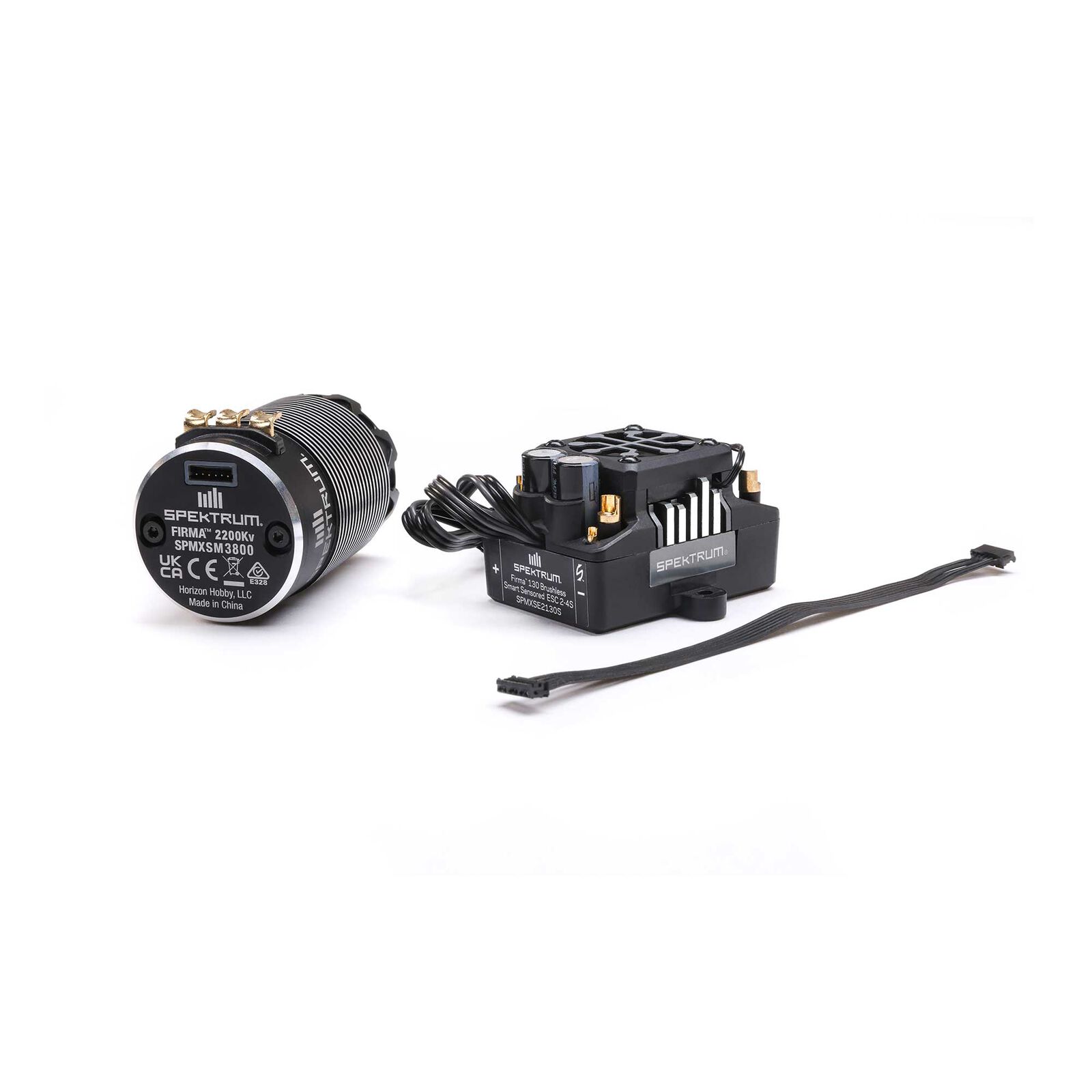

The Spektrum Firma Sensored System is a combo that includes a Sensored 2200kv Motor and the Firma 130 Amp Sensored ESC, providing a perfect upgrade for 1/8th scale buggies.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.

Firma ESCs gather the data and send it to your transmitter in real time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

This ESC comes bundled with a Spektrum Firma 2200Kv Sensored Brushless Motor, which is capable of handling everything this ESC can put out and is perfect for getting you driving with Spektrum Smart technology.

Features
  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Multiple options for easy programming:
    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
    • Forward programming directly from the TX when used with compatible SPM transmitters
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
  • Comes bundled with Spektrum Firma 2200Kv Brushless Motor
  • Compact for easy installation in most applications
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty (Through Horizon Hobby)
Specifications
Brakes: Yes
Programmable: Yes
ESC Type: Sensored Brushless
BEC: Yes
BEC Voltage: 6V or 7.4V
Input Voltage: 7.4V - 14.8V
Motor Output Lead: Solder tab
RPM/Volt (Kv): 2200Kv
Sensored: Yes
Shaft Length: 0.728" (18 mm)
Amperage: 120A or larger
Auto Cutoff: Yes
BEC Continous Current: 5A
Low-Voltage Cutoff Programmable: Yes
Number of Poles: 4
Overload Protection: Yes
Shaft Diameter: 0.197" (5 mm)
Maximum Burst Current: 760A
Maximum Continuous Current: 130A
Motor Type: Brushless Sensored
Speed Control: Included
Battery Connector: Solder tabs (user installable IC5 lead included)
Battery Input Lead: None, IC5
Technology: Smart
Forward: Yes
Reverse: Yes
In The Box
  • (1) Spektrum™ Firma™ Smart Sensored ESC
  • (1) Spektrum™ Firma™ 2200Kv Sensored Brushless Motor
  • (1) Spektrum Smart Sticker Sheet
  • (1) IC5 Battery Lead
  • (1) Product Manual
