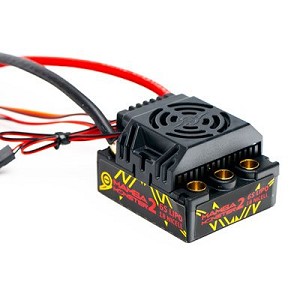

Castle Creation Monster 2 1:8Th 25V Esc Waterproof W/ 2200Kv Motor Sensored

Brute Power and Sheer Stamina!

Castle Creations' introduction of the Mamba Monster was a break-through moment for R/C modelers wanting to experience what seemed to be unobtainable. Brute power and sheer stamina have made this our legacy “power up” for popular 1/8th scale buggies, truggies and on road vehicles and 1/10th scale monster trucks.

The Mamba Monster 2 ESC is capable of 2S LiPo to a maximum of 6S LiPo and is waterproof, which means you can run your vehicle through the morning dew, across the soggy snow or just about anywhere else you’d be interested in running a 1/8th scale RC buggy or truck.

Industry Leading Software Functions

The Mamba Monster 2 includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings that tune and tweak your vehicle to your preferences, resulting in an incredible RC driving experience.

ESC Features:

• Adjustable Internal BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
• Factory equipped (30mm), fully removable cooling fan
• Waterproof design allows for use in nearly any environment
• LED error codes for common error conditions
• Convenient transmitter programming for nine common adjustable settings
• Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
• Proudly Designed, Assembled and Supported in Olathe, KS USA
• Backed by Castle Creations' 1 YR WARRANTY

Powerful Combination
This combo includes the Mamba Monster 2 controller and the recently updated Castle 1515-2200Kv V2 sensored* motor, which features:

• Input Voltage range: 2s-6s LiPo
• Redesigned rotor and stator assemblies.
• Reduced magnetic cogging, producing less residual drag brake.
• Increased efficiency, resulting in lower temperatures and longer run times.
• Smoother start-up, reducing cogging or stuttering when starting from a stop.
• Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note below)
• High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
• Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings

• Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
• High-Performance 0.2mm Steel Lamination Stacked Stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with High Quality Temperature-Stabilized Sensors
• T6 Aluminum CNC Machines Front/Rear End bell
• Proudly Designed and Supported in Kansas, USA.
• Backed by Castle Creations' 1-YEAR WARRANTY

Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.

ESC and Motor Package Includes:

• Mamba Monster 2 ESC
• 1515-2200kv V2 sensored* brushless motor
• Coupon for free Castle Link USB adapter
• Driver's Ed and Quick Start Guide
• Decal sheet

Specifications
