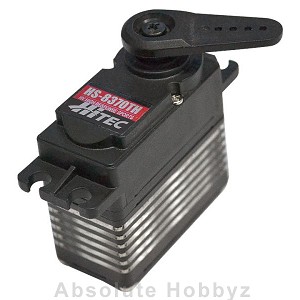

Hitec HS-8370TH Multi-Purpose Ultra Response Servo
Hitec HS-8370TH Multi-Purpose Ultra Response Servo

Hitec HS-8370TH Multi-Purpose Ultra Response Servo

Write a Review
On sale: $147.99 $109.99
Part Number: HRC38370
Brand: Hitec
Availability: In Stock.

The versatile, multipurpose functionality of the HS-8370TH will have all radio control enthusiasts clamoring for more. Robust titanium gears, ultra-efficient coreless motor, high resolution, non-programmable digital circuits make this swift, responsive servo incredibly durable and amazingly reliable. Install the HS-8370TH in everything from your 35% sport plane to your 700+ size heli to your 1/8th short course truck - no matter what application, it gets the job done.

Features

  • High Resolution Ultra Response Non-Programmable Digital Circuit
  • Efficient Coreless Motor
  • Durable Titanium Gears
  • 7.4v 2-Cell LiPo Capability
  • Industry Standard 25 Tooth Spline (Fut. Compatible

Applications

Helicopters 700+, 1/8th Scale Short Course Trucks, 1/8th Scale Buggies, Truggies and Monster Trucks

Specifications

Motor Type:Coreless
Bearing Type:Dual Ball Bearing
Speed (6.0V/7.4V):0.12 / 0.10 second
Torque oz./in. (6.0V/7.4V):250 / 319 oz-in
Torque kg./cm. (6.0V/7.4V):13 / 16 kg-cm
Size in Inches:1.57" x 0.79" x 1.50"
Size in Millimeters:40 x 20 x 38 mm
Weight oz.:2.4oz.
Weight g.:68g.

Advanced Servo Specifications

Control System:HR Ultra Response Non-Programmable Digital
Operating Voltage Range:4.8 - 7.4 vDC
Operating Temperature Range:-4° to 140° F (-20° to 60° C)
Idle Current:10 mAh
No Load Running Current (6.0V/7.4V):470 mAh
Stall Current (6.0V/7.4V):5800 mAh
Dead Band Width:< 1 µsec
Potentiometer Type:4 Slider Rated @ 1M Cycles
Connector Wire Length:11.8 in. (300mm) Flat
Connector Wire Gauge:20 AWG 80 Strand
