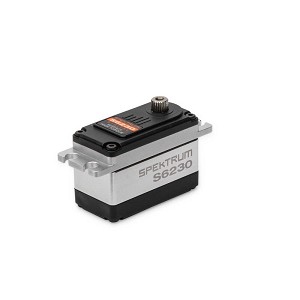

Spektrum S6230 Standard Digital High Torque Metal Gear Surface Servo SPMSS6230

Spektrum S6230 Standard Digital High Torque Metal Gear Surface Servo

Write a Review

Your Price: $79.99

Part Number: SPMSS6230

GTIN: 605482078532

Brand: Spektrum

Availability: In Stock.

Quantity

Description
Video
Compatibility

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Features

Removable wire harness with different lengths available
7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Aluminum case for good heat dissipation
Aluminum mounting tabs
NMB dual main bearings
23T output shaft
Waterproof
1-Year Limited Warranty

Specifications

Application	Surface
Bearing	Dual
Bushing Or Bearing	Bearing
Connector Wire Length	7.87 in (200mm)
Current Draw Idle	9.8 mA @ 6.0V
Current Draw Stall	4900mA @ 6.0V
Gear Type	Metal
Input Voltage	6.0V
Material	Metal / Plastic
Maximum Servo Torque	311 oz-in (22.4kg-cm) @ 6.0V
Part Type	Electronics
Product Application	Surface
Product Height	1.18 in (30mm)
Product Length	1.61 in (41mm)
Product Weight	2.1 oz (59.5g)
Product Width	0.82 in (20.8mm)
Programmable	No
Rotation Range	120 deg
Servo Operating Voltage	6.0V
Servo Size Category	Standard
Servo Type	Digital
Spline Count	23 Teeth
Wire Gauge	22 AWG
