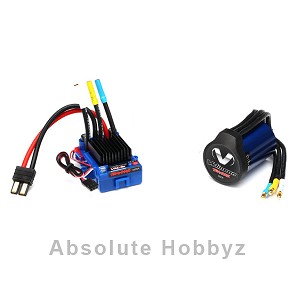

Traxxas VXL-3S Velineon Brushless Power System Combo (Waterproof)

Write a Review
Your Price: $169.95
Part Number: TRA3350R
Availability: Out of Stock.
This is the Traxxas Velineon Extreme Brushless Waterproof Power System for electric powered R/C vehicles.
Velineon VXL-3s ESC:
  • Auto-detects and compatible with brushed, brushless and sensored brushless motors
  • Compatible with NiCd, NiMH (4-10 cells) and 2-3 cell LiPo battery packs-two stage low voltage detection for LiPos
  • Three driver profiles-Sport, Race and Training Modes Gold-plated motor connectors
  • Built-in output for optional auxiliary cooling fan
 Velineon 3500 Brushless Motor:
  • 10-turn 3500kV
  • Optimized for extreme power and efficiency in 1/10 scale vehicles
  • Ultra high temp neodymium magnets, high-speed ball bearings
  • Precision balanced rotor
  • Traxxas High-Current Connector
  • Reverse polarity protection makes backward connections impossible
  • Compatible with high-current 12-gauge wire Gold-plated wide surface terminals
  • Textured surface for easy gripping
Requires:
  • Installing in vehicle NiCd, NiMH (4-10 cells) or 2-3 cell LiPo battery

Specifications:

  • Input voltage: 4.8-11.1V (4-10 cells NiMH or 2S-3S LiPo)
  • Supported motors: Brushed/Brushless/Sensorless brushless
  • Motor Limit: None
  • Continuous current: 200A
  • Peak current: 320A
  • BEC voltage 6.0V DC
  • Transistor type: MOSFET
  • On-resisteance: 0.00075 ohms Max (0.006/8 FETs)
  • PWM frequency: 12,000Hz
  • Battery connectors: Traxxas High-Current Connector
  • Motor connectors: TRX 3.5mm bullet connectors
  • Motor/battery wiring: 12-gauge Maxx Cable
  • Thermal protection: 2-ge thermal shutdown
  • Case size (l/w/h): 2.19" x 1.54" x 1.3" (55 x 39 x 33mm)
  • Weight: 3.17oz (90g)
  • Velineon 3500 Motor
  • Type: Sensorless brushless
  • RPM/volt: 3500 (10-turn)
  • Magnet type: Ultra High-Temperature, sintered neodymium
  • Connection type: TRX 3.5mm bullet connectors
  • Wire Size: 12-gauge Maxx Cable w/solder tabs
  • Current Ratings: 65A constant; 100A peak/burst
  • Max RPM: 50,000
  • Diameter: 1.42" (36mm) (540 size)
  • Length: 2.165"(55mm)
  • Weight: 9.24oz (262g)
